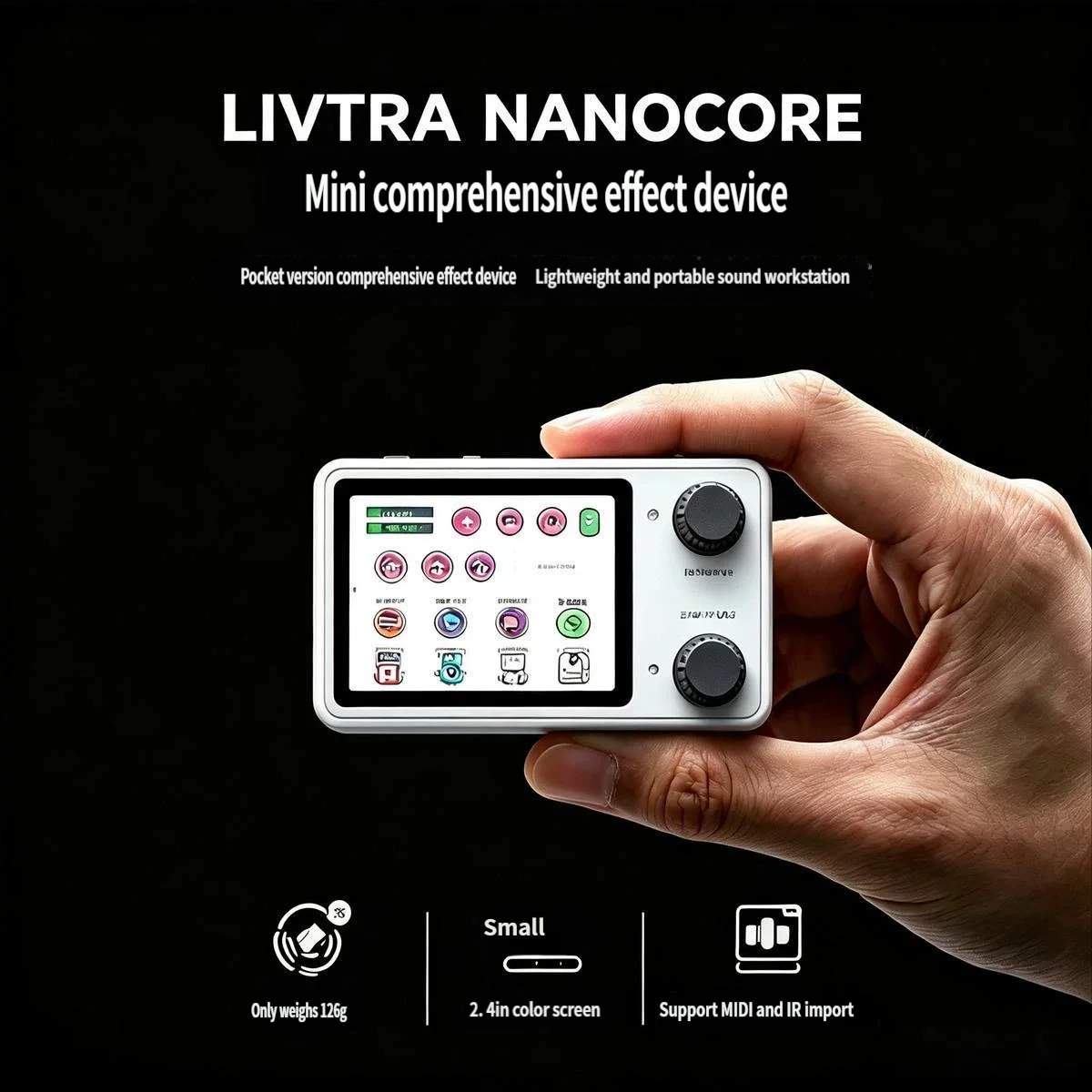

Weighing 126g, it features an "8+1" signal chain architecture and supports USB-C audio transmission and RESONA tone technology. It is a compact effects unit that integrates practice, recording, and live performance capabilities.
- USB Audio: Supports direct connection to smartphones or computers for recording.
- Loopback: Supports internal recording with separation of backing track and guitar signals.
- Bluetooth/USB Input: Independent volume control for backing track input.
- MIDI Control: Supports both wireless Bluetooth and wired MIDI control.
- Input Gain: Independent input gain adjustment.
- Signal Chain: Supports simultaneous activation of 8+1 modules.
Signal Chain8+1 modules active
IN → FX1 → FX2 → AMP → CAB → DEL → MOD → REV → EQ → OUT
FX1 01 Dynamics
- Includes Noise Gate, Auto Gate, Compressor + Gate, and Compressor; used to stabilize input dynamics and suppress stage noise.
FX2 02 Drive & Filter
- Covers classic stompbox effects, Exciter, Pitch Shift, Dynamic Wah, and Auto-filter Wah, meeting needs ranging from signal enhancement to distinctive front-end tone shaping.
AMP 03 Amp Models
- Provides 30 amp slots, including 25 guitar amp and 5 bass amp models; each slot supports loading RESONA tone sample files.
CAB 04 Cab Models
- Provides 30 cabinet slots with built-in guitar and bass cabinet simulations, and supports the import of third-party IR (Impulse Response) files. DEL 05 Delay
- Includes types such as BBD, Digital, Duck, Ice, Reverse, Lofi, Smear, and Mod, covering everything from rhythmic spatial effects to experimental ambient soundscapes.
MOD 06 Modulation
- Includes Chorus, Phaser, Flanger, Tremolo, and Vibrato, adding dynamic movement to clean, lead, and background tones.
REV 07 Reverb
- Includes types such as Room, Plate, Hall, Concert, Spring, Shimmer, and Cloud, creating a range of effects from natural spatial ambience to massive, atmospheric soundscapes.
EQ 08 EQ
- Offers three frequency band configurations (EQ3, EQ6, and EQ8), supporting quick tone shaping and precise frequency adjustments for live performances.
UI Themes
- Official theme packs will be updated regularly; the LIVTRA software for macOS/Windows supports custom themes, allowing users to edit NANOCORE's UI assets, fonts, and text content.
LIVTRA Desktop Theme Editor: Edit the NANOCORE interface on your computer
- The macOS/Windows version of LIVTRA software features a dedicated theme editing page. It supports editing the device's 320×240 display area—including swapping UI assets, importing fonts and multilingual text—and allows users to save themes as .theme files or upload .uia1 files directly to the NANOCORE device. Theme editing is not supported on iOS or Android platforms.
Tone Library: 30 AMPs / 30 IRs / RESONA
AMP (Amplifier) Models
- 25 guitar amp models + 5 bass amp models. Each AMP slot can load RESONA tone sample files.
IR / CAB (Cabinet)
- 25 guitar cabinet models + 5 bass cabinet models. Supports importing third-party IR files for quick cabinet and microphone matching. RESONA Ecosystem
You can swap, preview, and save RESONA and IR files to slots.
- 01 Connect to a computer or mobile phone via a USB-C cable.
- 02 Open the desktop software or file management interface.
- 03 Import RESONA tone samples or third-party IR files.
- 04 Save them to slots and add them to the signal chain.
Technical Specifications
Size / Weight90.5 x 55.5 x 36.7 mm / approx. 126g
Audio Specs44.1KHz / 24bit / 103dB dynamic range
Input6.35mm unbalanced TS mono, 1MΩ impedance
Output6.35mm unbalanced TS mono, 100Ω impedance
Headphone Output3.5mm TRS stereo, drives 16Ω low-impedance headphones
USB-CDC 5V 1A charging / data connection / driverless recording to PC and phone
Battery1300mAh / 3.7V lithium battery, approx. 9-10 hours
Control & RoutingBT input, USB input, BT wireless MIDI, wired MIDI, Loopback recording, independent Input Gain
